Feature:
1. Epistar 5730 SMD, 110-120lm/W;
2. No fan heat dissipation solution;
3. 360 degree beam angle;
4. Flame retardant material;
5. IP64 waterproof design;
6. Replace HPS, HQL, MHL, suitable for use in enclosed luminaires;
7. Transparent cover and diffuser cover both available;
Product name: | LED Corn Light |
Power: | 27W |
Beam Angle: | 360 degree |
LED Quantity: | 81pcs LEDs |
Luminous Flux: | 3240Lm |
LED Luminous Efficiency: | 110-120Lm/W |
Power Factor: | > 0.90 |
CRI: | >80 |
Replacement: | Traditional high power 200W CFL |
Waterproof level: | IP64 |
Warranty: | 5 Years |
Certifications: |
DLC CE RoHS and TUV approved |
Product Details |
![]() |

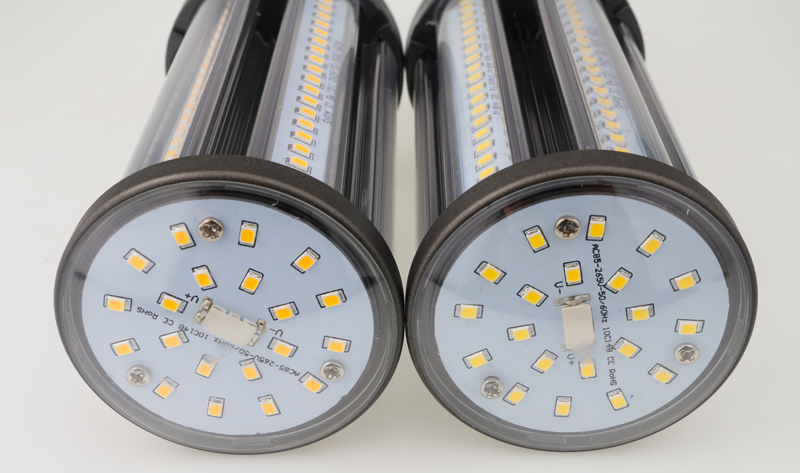

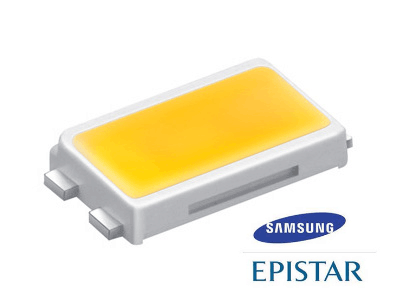

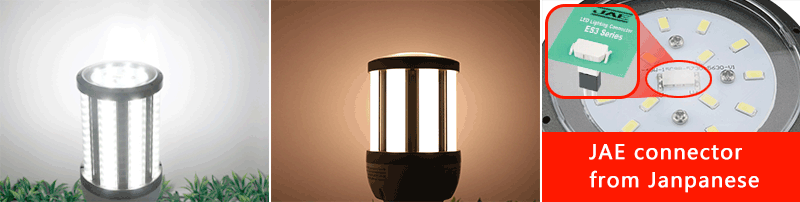

SAMSUNG & EPISTAR CHIP1.Global branded led used; 2.High lumen lfux,120lm/w; 3. Epistar/Samsung SMD 5730 chips; 4.Best stability and high brightness. |

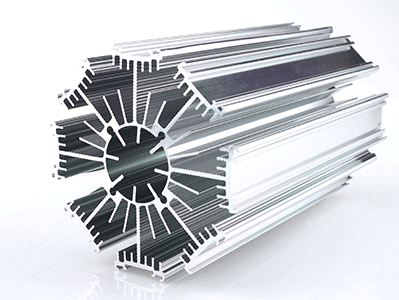

QUALITY ALUMINUM1.Fin-type heat sink with high thermal comducivity aluminum 2.Special surface treatment process |
![]() |
![]() |

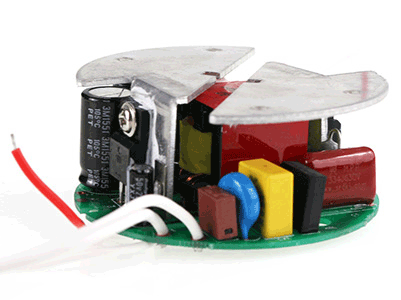

Driver
1.Use top brand Rubycon capatiors; 2.improve the driver stability and reliability
|

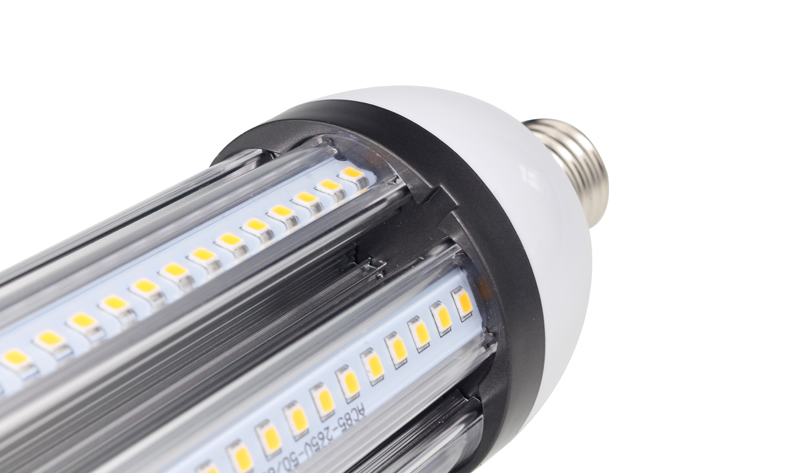

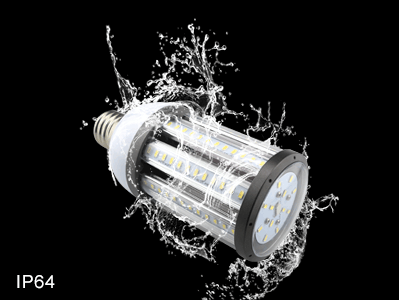

Patented IP64 ingress Protection design 1.IP64 waterproof rating 2.Waterproof rubber rings on the at the top 3.UL DLC CE RoHS PSE and TUV Attestation
|
![]() |

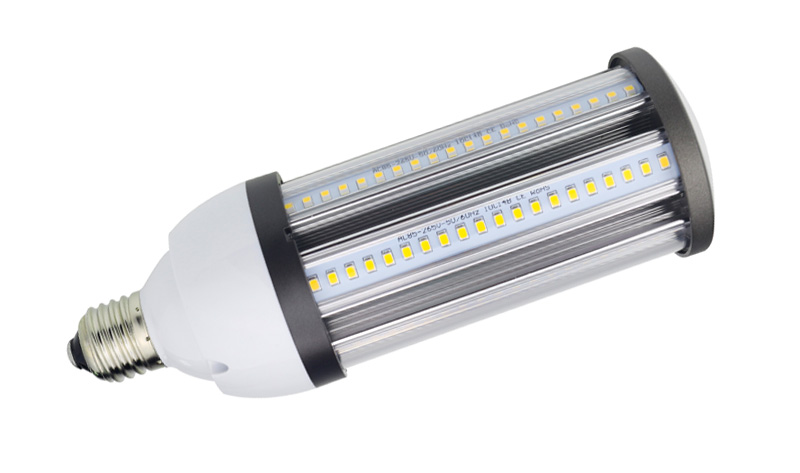

27W IP64 LED corn light |

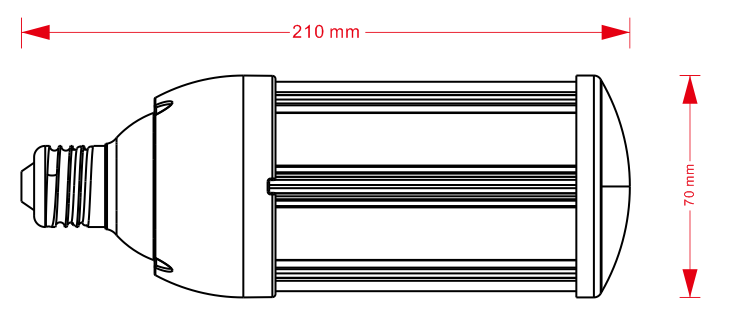

Size of SCL 27W IP64 LED corn light |

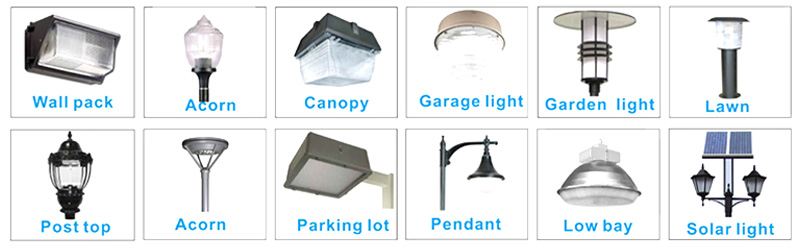

Replacemet Fixtures |
TYKI ip65 led corn bulbs can be installed in teh folloing fixtrres,to replace HPS,incandescent lamp,DTL,UL,etc.

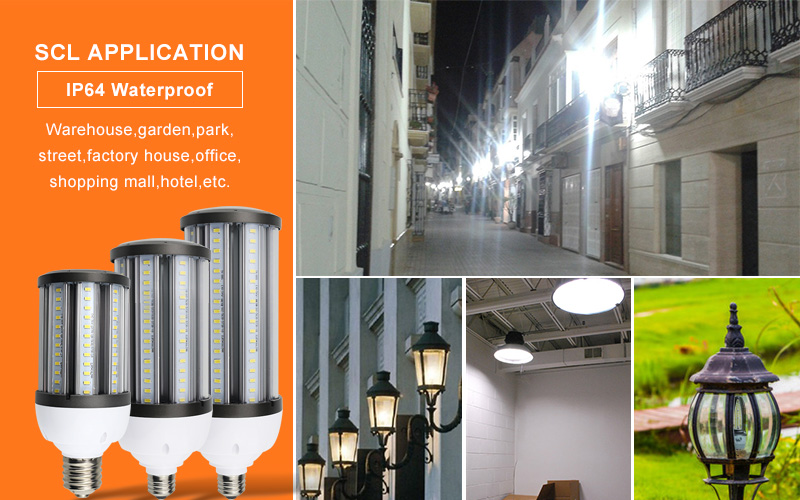

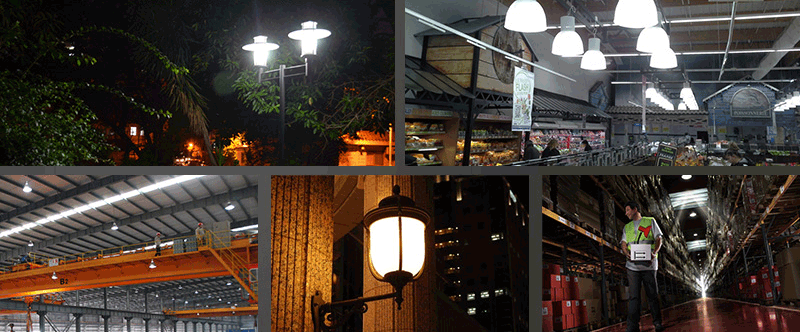

Application |
THIS LED STREET LIGHT IS APPLY TO WIDELY USED IN MAIN STEM, HIGHWAY, ELEVATED ROAD, STREET, OVERLINE BRIDGE AND SQUARE, SCHOOL, DWELLING DISTRICT, INDUSTRIAL AREA, PARK.

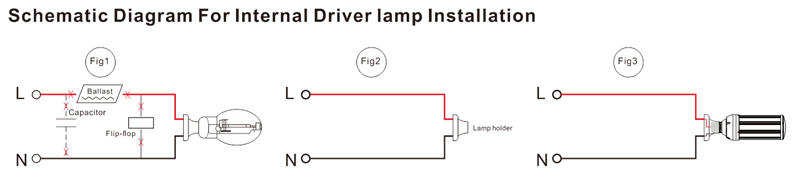

Installation Instruction |
1.Turn off the power switch
2.Remove old ballast or disconnect from existing lamp holder.
Remove and dispose of ballast in correct manner.(Europe 85-265VAC)
3.Reconnect directly to the existing lamp holder
4.Install new LED replacement lamp, please make sure the old fitting
is correctly earth.

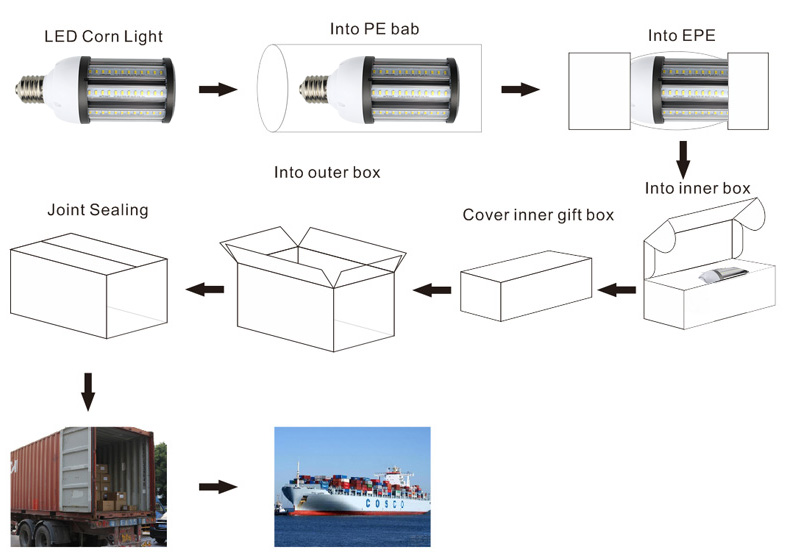

Packing |
length | width | height | GW(kg) | |
Inner Box (1pc) | 260mm | 95mm | 95mm | 0.5 |
Outer Carton (24pcs) | 520mm | 430mm | 430mm | 16.5 |
